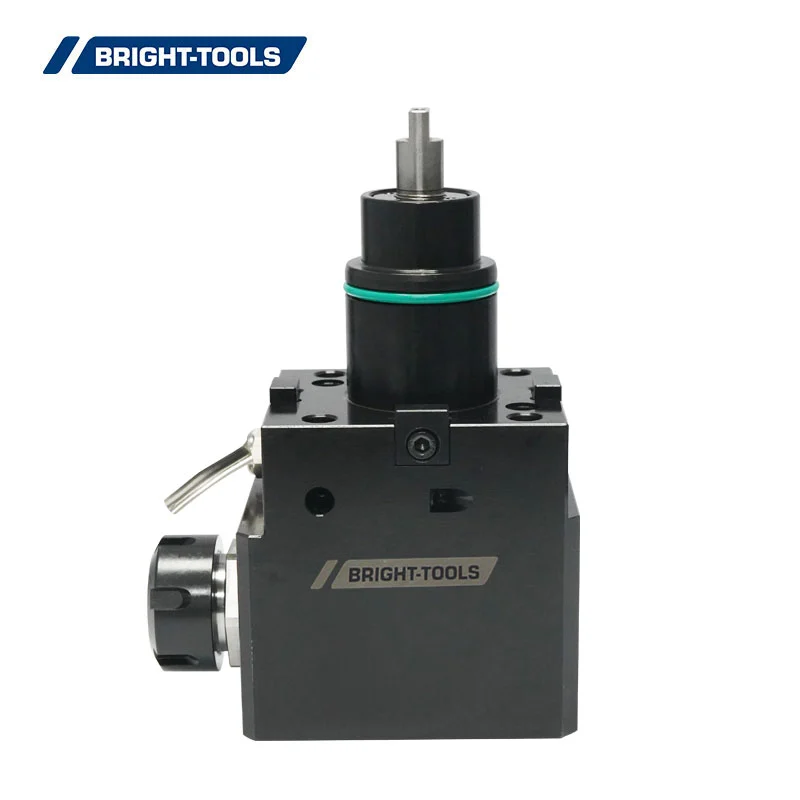

BMT-P-driven tools are used on a wide range of turning centers for milling, drilling, and tapping operations. Radial-driven head is connected with the turret with OD or face mounting for axial or radial machining, used with ER collets for cylindrical cutting tools.
Turret Size: BMT45 BMT55 BMT65 BMT75 BMT85
Driven coupling: DIN 1809
Direction: Radial 90 deg.
Output: ER25 ER32
Max Speed: 6000 RPM
Coolant: external, internal can be made by request.

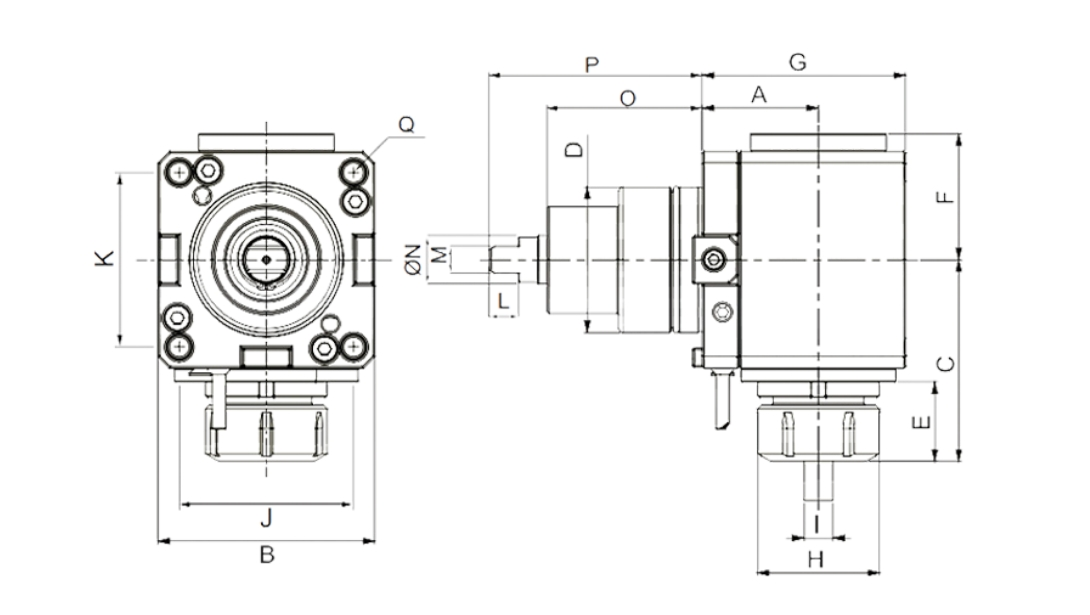

| No. | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
| BMT55-DRER25-60 | 60 | 85 | 78.5 | 55 | 27.5 | 50 | 86 | 42 | ER25 | 64 | 64 | 10 | 8 | 17 | 75 | 103.5 | M10 |
| BMT55-DRER25-70 | 70 | 85 | 78.5 | 55 | 27.5 | 50 | 86 | 42 | ER25 | 64 | 64 | 10 | 8 | 17 | 75 | 103.5 | M10 |
| BMT55-DRER25-85 | 85 | 85 | 78.5 | 55 | 27.5 | 50 | 86 | 42 | ER25 | 64 | 64 | 10 | 8 | 17 | 75 | 103.5 | M10 |
| BMT65-DRER32-72 | 72 | 94 | 92 | 65 | 36 | 54.5 | 108 | 50 | ER32 | 73 | 70 | 14 | 10 | 20 | 81 | 111.5 | M12 |
| BMT65-DRER32-100 | 100 | 94 | 92 | 65 | 36 | 54.5 | 136 | 50 | ER32 | 73 | 70 | 14 | 10 | 20 | 81 | 111.5 | M12 |
| BMT75-DRER40-60 | 60 | 112 | 104 | 75 | 41 | 65 | 105 | 63 | ER40 | 90 | 90 | 15 | 14 | 23 | 80 | 110 | M12 |
| BMT75-DRER40-90 | 90 | 112 | 104 | 75 | 41 | 65 | 135 | 63 | ER40 | 90 | 90 | 15 | 14 | 23 | 80 | 110 | M12 |
| BMT75-DRER40-125 | 125 | 112 | 104 | 75 | 41 | 65 | 170 | 63 | ER40 | 90 | 90 | 15 | 14 | 23 | 80 | 110 | M12 |
| BMT85-DRER40-110 | 110 | 125 | 134.8 | 85 | 54.3 | 75.5 | 160 | 78 | ER50 | 100 | 100 | 20 | 16 | 27.5 | 96 | 136 | M12 |
