bt precision drill chuck holder2 BBT Precision Drill Chuck Holders

BBT Precision Drill Chuck Holders

BBT CPU Drill chuck , worm and gear structure greatly increase the clamping power. integral structure increase the rigidity and accuracy. Runout reach 0.05mm. The claw use Nitriding process increase the wear resistance and longer tool life.

1. Worm and gear structure greatly increase the clamping power. integral structure increase the rigidity and accuracy.

2. Runout reach 0.05mm.

3. Claw use Nitriding Porcess.


Buy BBT Precision Drill Chuck Holders

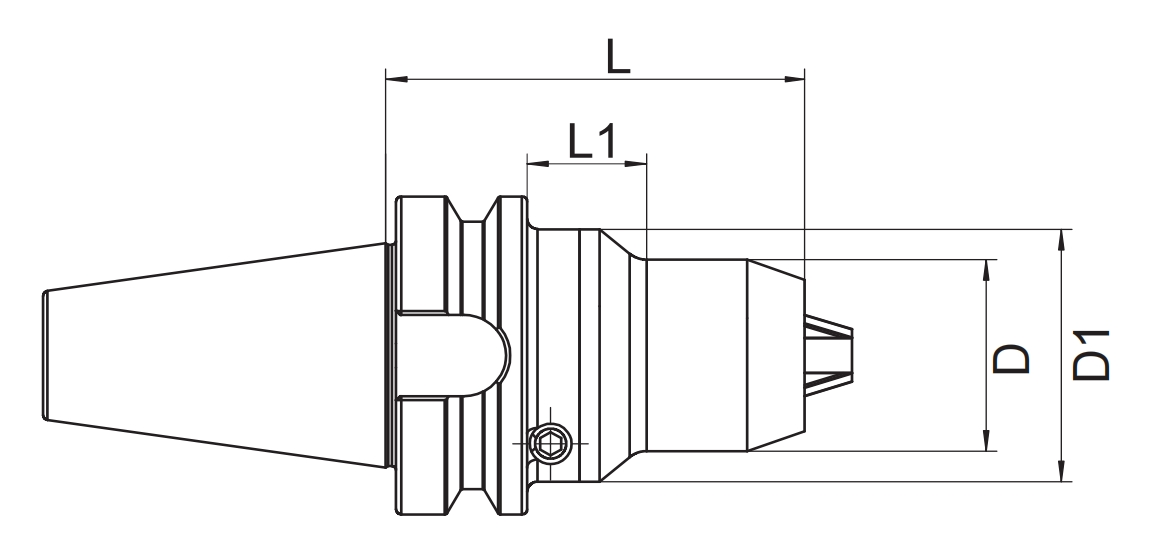

TECHNICAL DRAWING OF PRECISION DRILL CHUCK HOLDERS

Precision Drill Chuck Holders
Carburizing Quenching
High Precision

SPECIFICATION OF PRECISION DRILL CHUCK HOLDERS

SPECIFICATION OF PRECISION DRILL CHUCK HOLDERS

SizeDD1LL1Capacity
BBT40-CPU10-80385080211-10
BBT40-CPU13-9050-90-1-13
BBT40-CPU16-9050-90-1-16






BBT50-CPU13-10050-100-1-13
BBT50-CPU16-10050-100-1-16
