BBT Face Mill Holders
BBT face milling tool holder is a kind of tool holder specially used for face milling cutters.

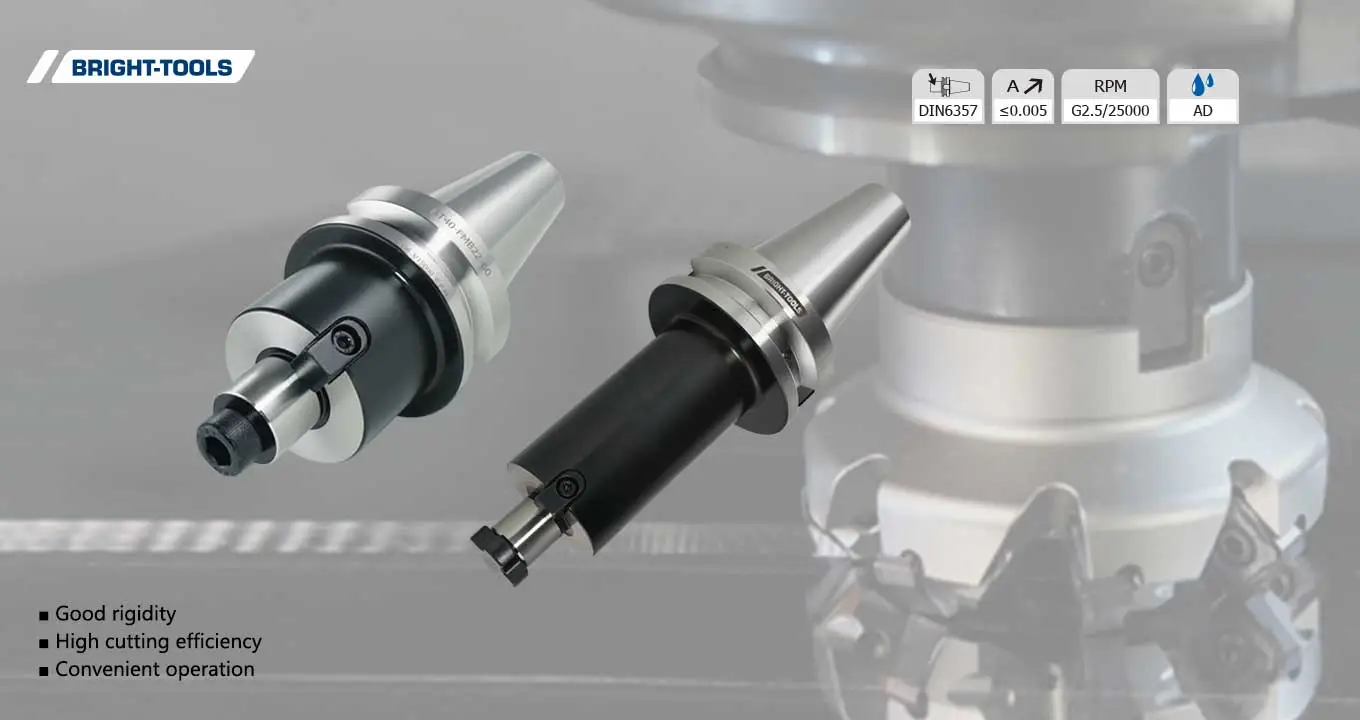

1. Good rigidity.
2. High cutting efficiency.
3. Convenient operation.
4. BBT spindle is first choice.

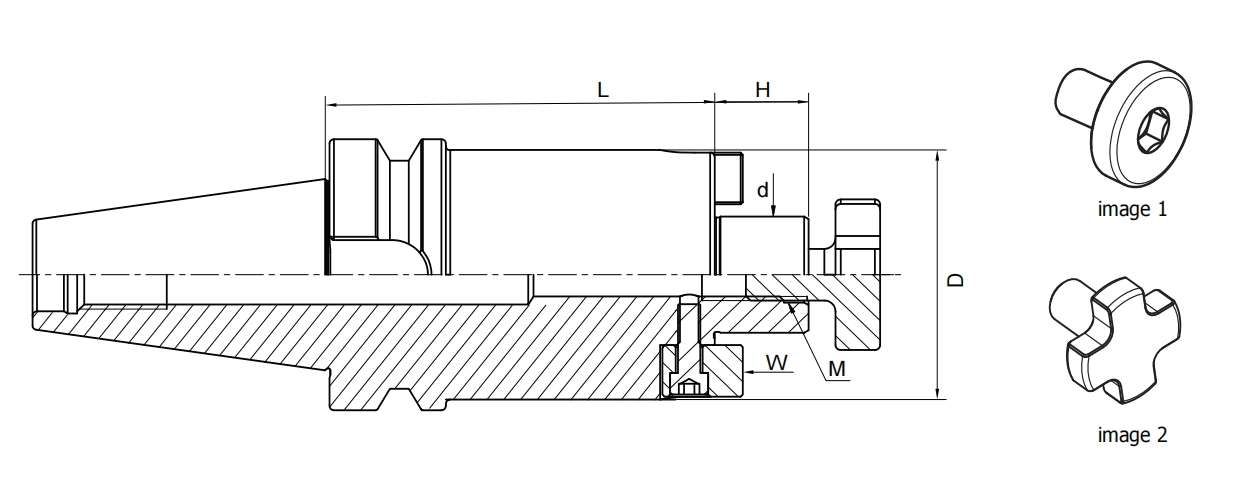

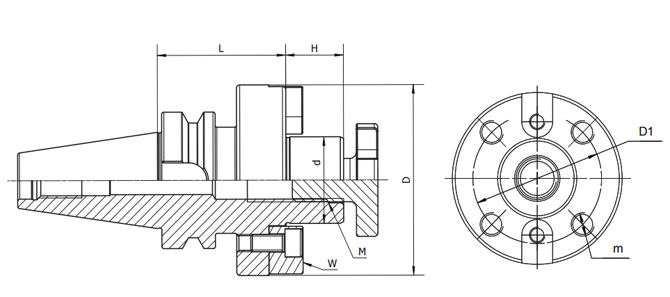

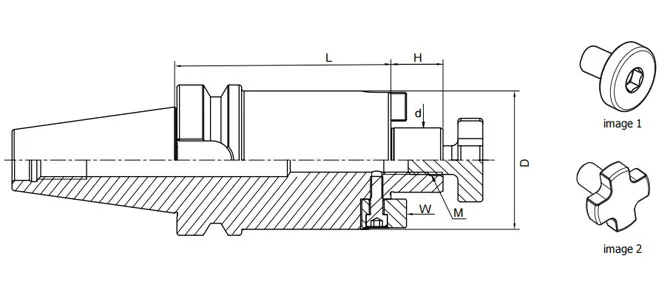

Size | d | L | D | H | M |
BBT40-FMB16-40 | 16 | 40 | 38 | 17 | M8 |
BBT40-FMB22-40 | 22 | 40 | 48 | 19 | M10 |
BBT40-FMB27-40 | 27 | 40 | 58 | 21 | M12 |
BBT40-FMB32-50 | 32 | 50 | 78 | 24 | M16 |
BBT40-FMB22-60 | 22 | 60 | 48 | 19 | M10 |
BBT40-FMB27-60 | 27 | 60 | 58 | 21 | M12 |
BBT40-FMB32-60 | 32 | 60 | 78 | 24 | M16 |
BBT40-FMB16-100 | 16 | 100 | 38 | 17 | M8 |
BBT40-FMB22-100 | 22 | 100 | 48 | 19 | M10 |
BBT40-FMB27-100 | 27 | 100 | 58 | 21 | M12 |
BBT40-FMB32-100 | 32 | 100 | 78 | 24 | M16 |
BBT50-FMB16-40 | 16 | 40 | 38 | 17 | M8 |
BBT50-FMB22-40 | 22 | 40 | 48 | 19 | M10 |
BBT50-FMB27-40 | 27 | 40 | 58 | 21 | M12 |
BBT50-FMB32-50 | 32 | 50 | 78 | 24 | M16 |
BBT50-FMB22-60 | 22 | 60 | 48 | 19 | M10 |
BBT50-FMB27-60 | 27 | 60 | 58 | 21 | M12 |
BBT50-FMB32-60 | 32 | 60 | 78 | 24 | M16 |
BBT50-FMB16-100 | 16 | 100 | 38 | 17 | M8 |
BBT50-FMB22-100 | 22 | 100 | 48 | 19 | M10 |
BBT50-FMB27-100 | 27 | 100 | 58 | 21 | M12 |
BBT50-FMB32-100 | 32 | 100 | 78 | 24 | M16 |
BBT50-FMB22-160 | 22 | 160 | 48 | 19 | M10 |
BBT50-FMB27-160 | 27 | 160 | 58 | 21 | M12 |
BBT50-FMB32-160 | 32 | 160 | 78 | 24 | M16 |
BBT40-FMB40-50 | 40 | 50 | 88 | 27 | M12 |
BBT40-FMB40-100 | 40 | 100 | 88 | 27 | M12 |
BBT50-FMB40-50 | 40 | 50 | 88 | 27 | M12 |
BBT50-FMB40-100 | 40 | 100 | 88 | 27 | M12 |
