vdi b1a 3

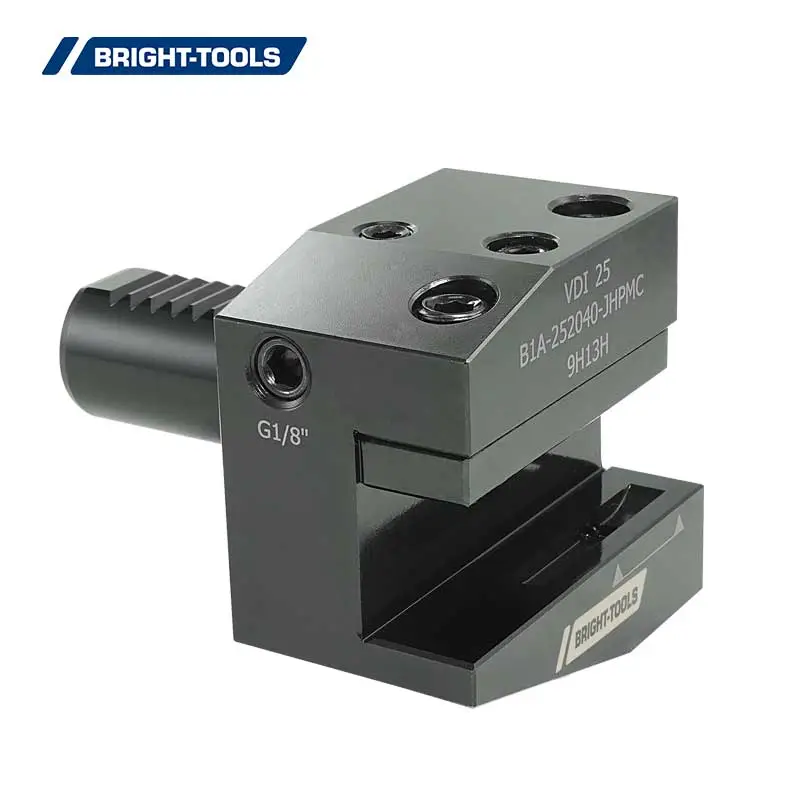

vdi b1a 1

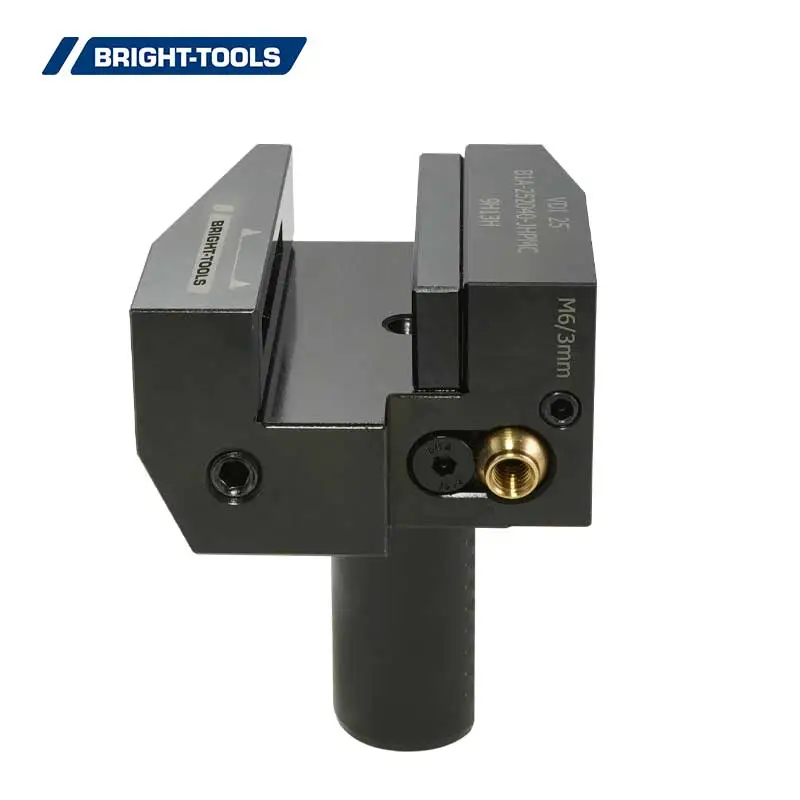

vdi b1a 2

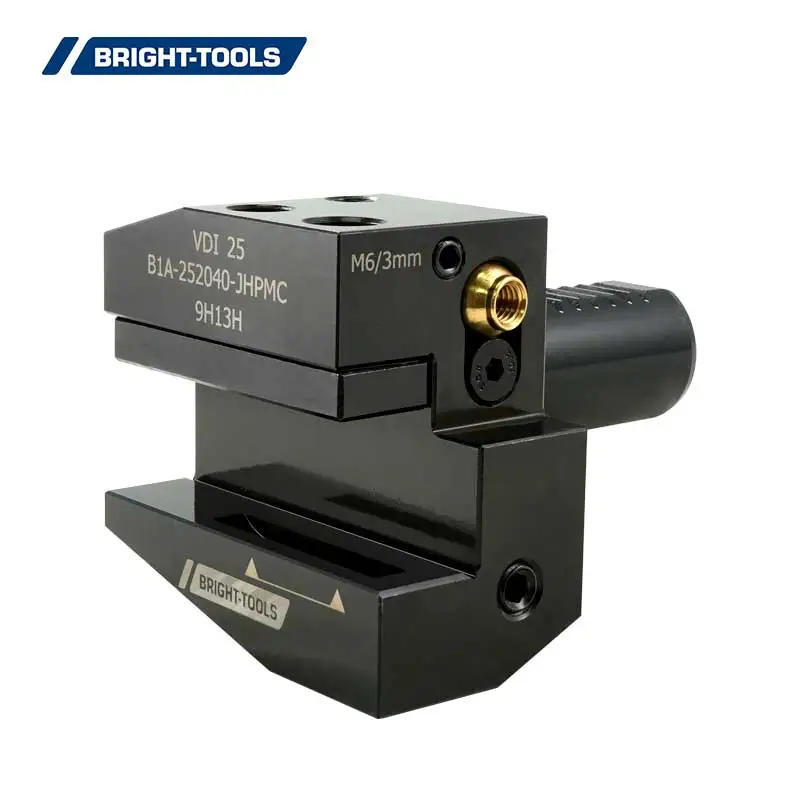

vdi b1a 3 B1A Radial, Short, Coolant

B1A Radial, Short, Coolant

High stiffness, thanks to straight shank and flange face contact

Rigid design due to a serrated clamping system

With a bottom coolant inlet hole

A coolant outlet slot that enables adjustment of the tool's overhang


Buy B1A Radial, Short, Coolant

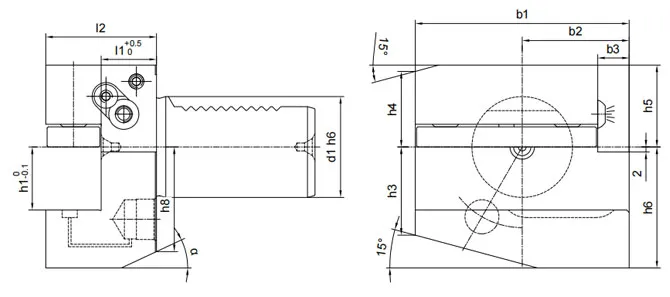

TECHNICAL DRAWING OF B1A RADIAL, COOLANT

B1A Radial, Short, Coolant

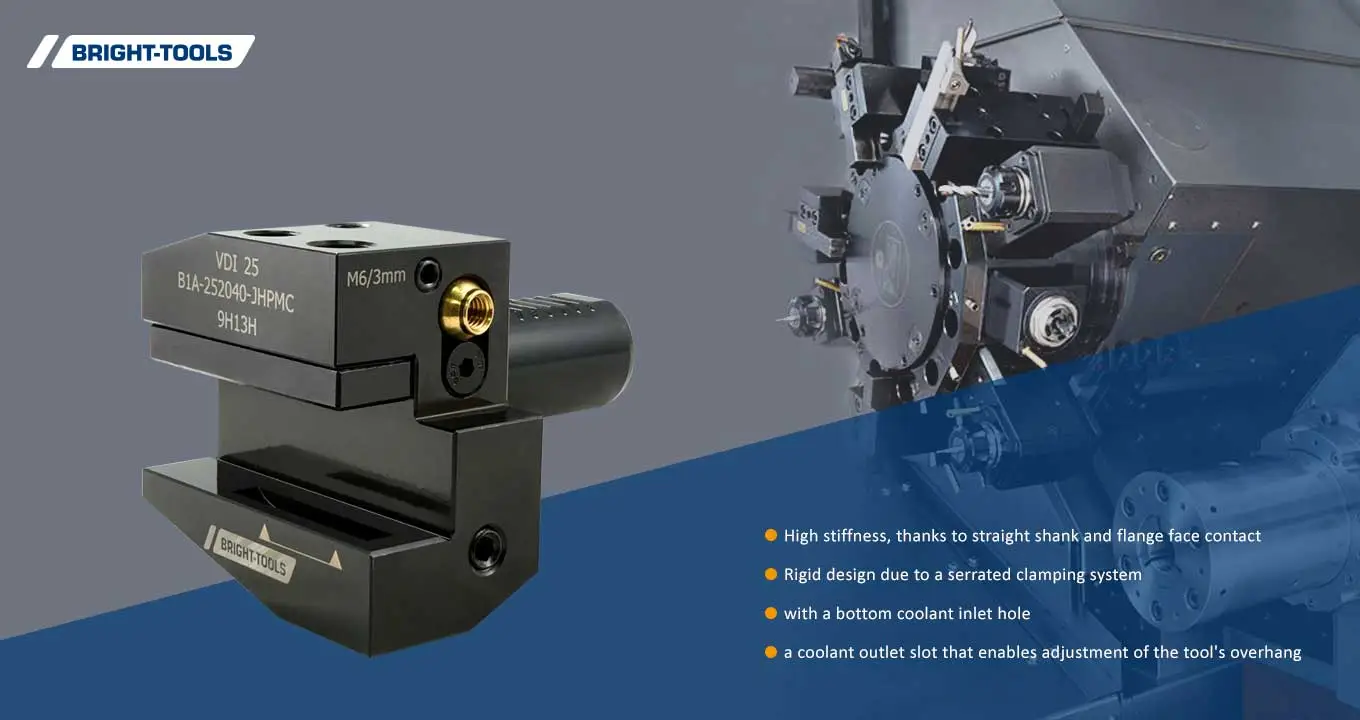

VDI Coolant Tool Holder
VDI Turret

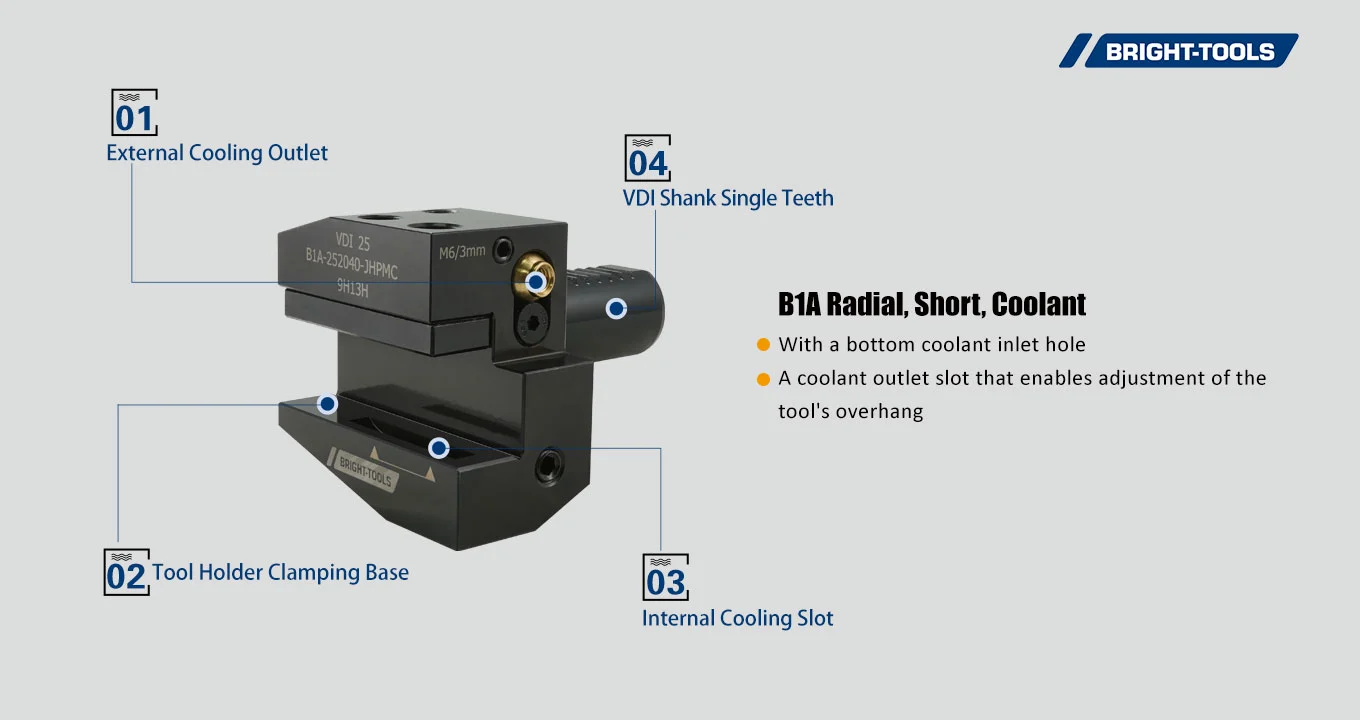

Product Structure

High Concentricity of Vdi Tool

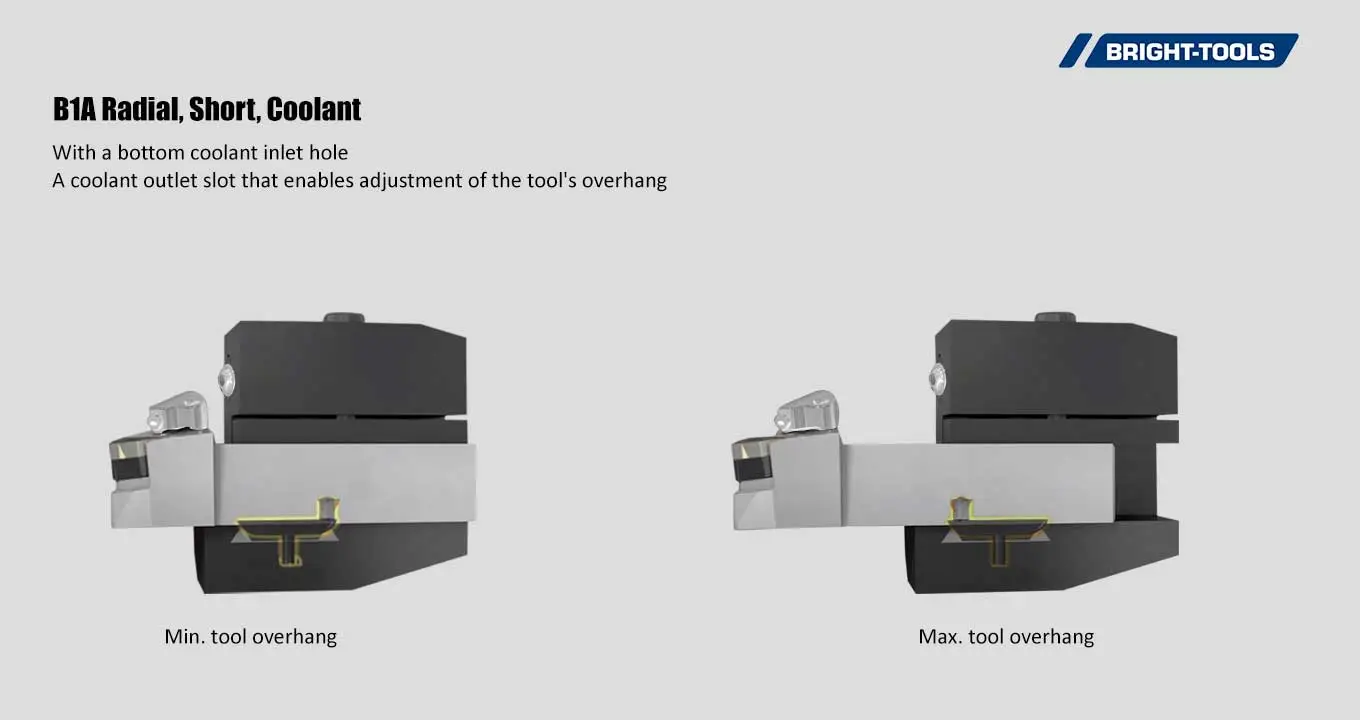

Mt Live Tooling

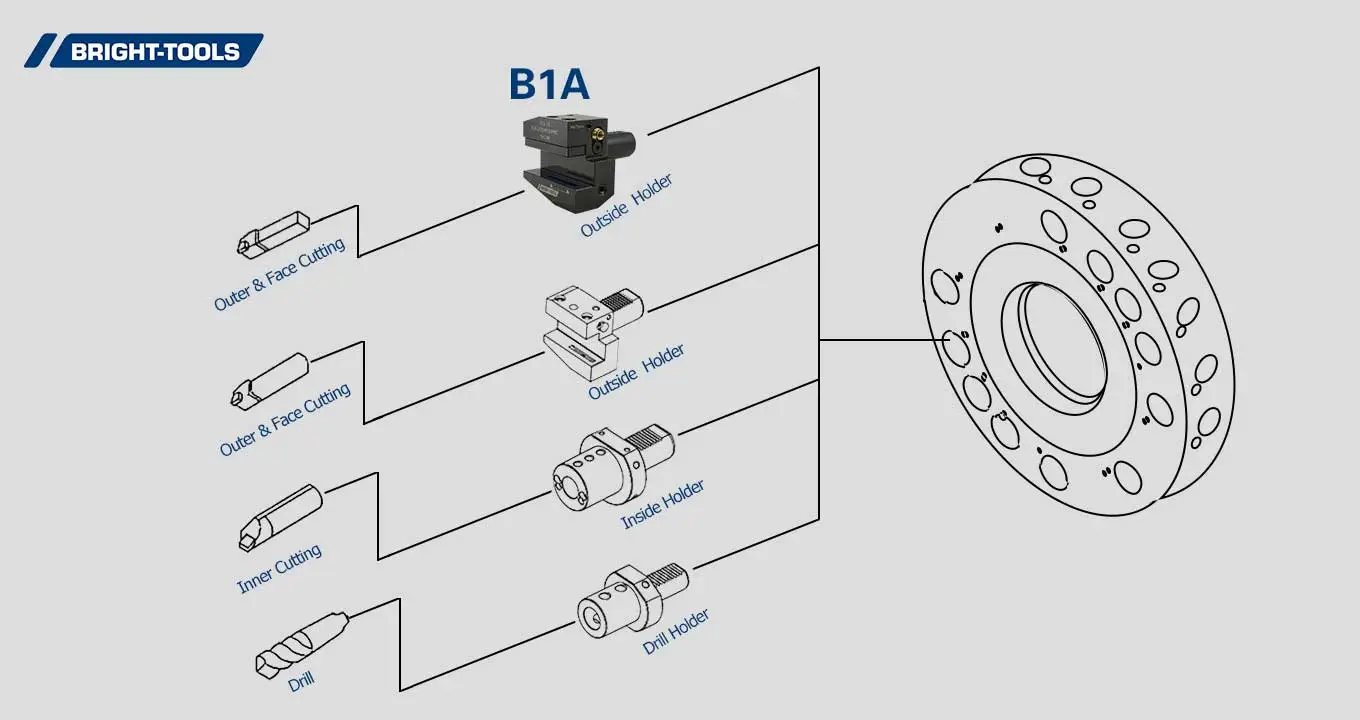

Product Structure of Cnc Live Tooling

SPECIFICATION OF B1A RADIAL, COOLANT

SPECIFICATION OF B1A RADIAL, COOLANT

Sizeb1b2b3l1h3h4h5h6h8α
B1A-1612344223523151520221930˚
B1A-2016405530726191925302330˚
B1A-25204070351022262228383025˚
B1A-30204070351022262228383025˚
B1A-4025448542.512.522353032.5484330˚
B1A-5025448542.512.522433032.5484330˚
