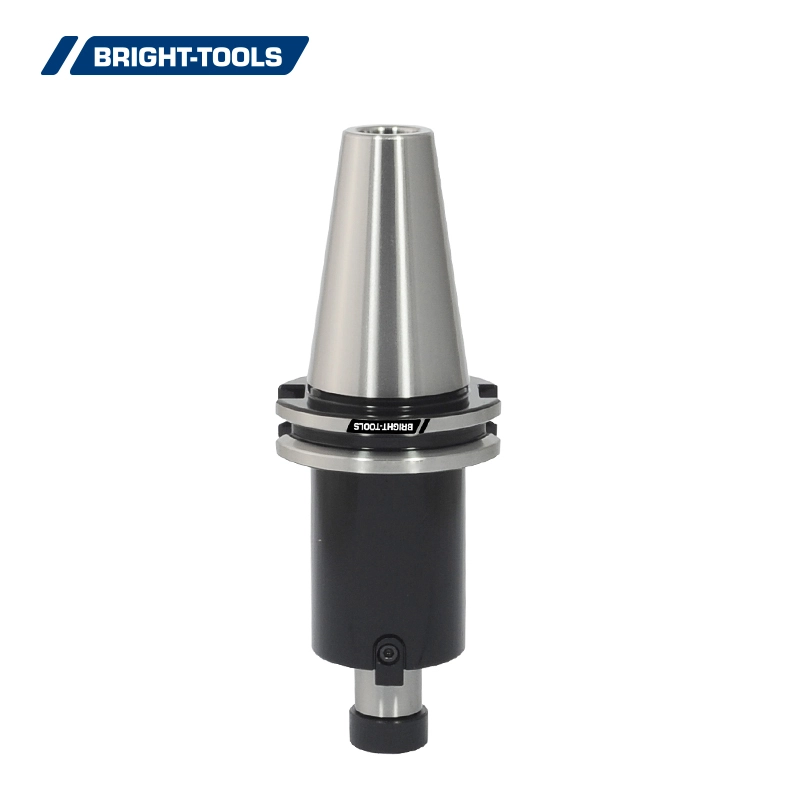

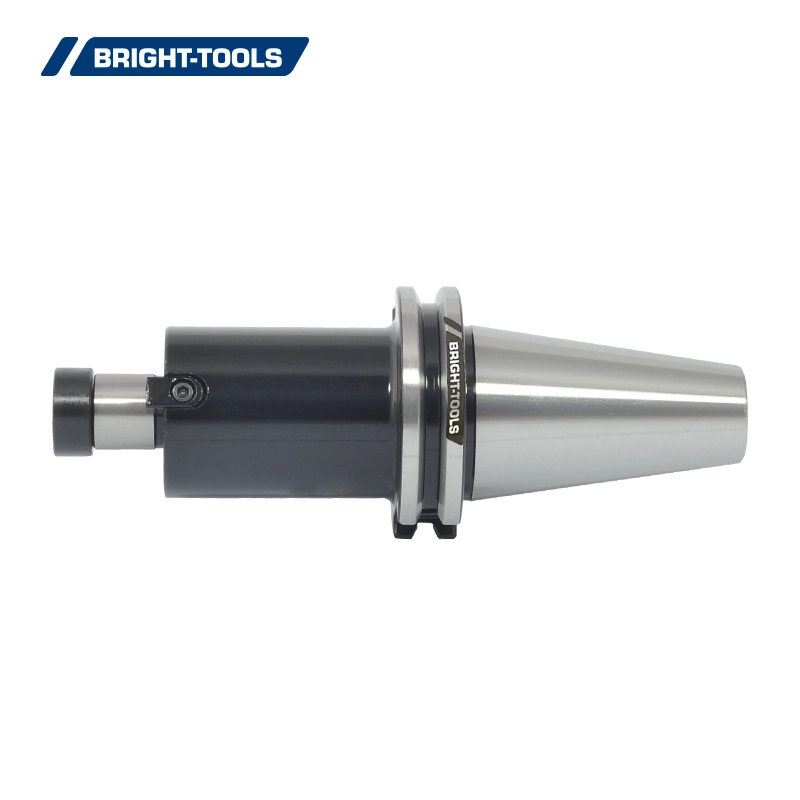

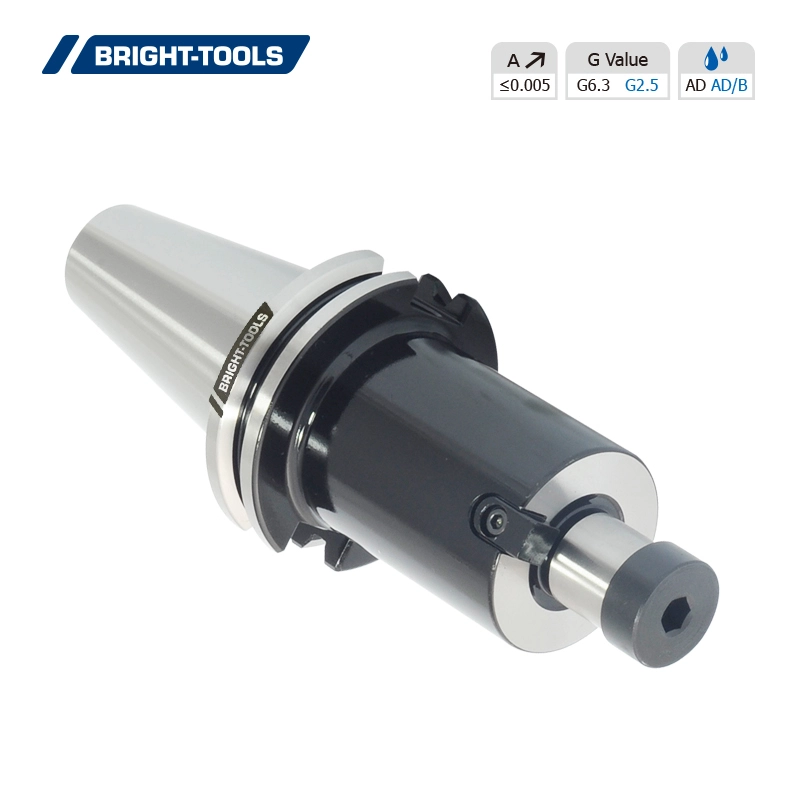

ANSI B5.50 Face Mill Holder Inch

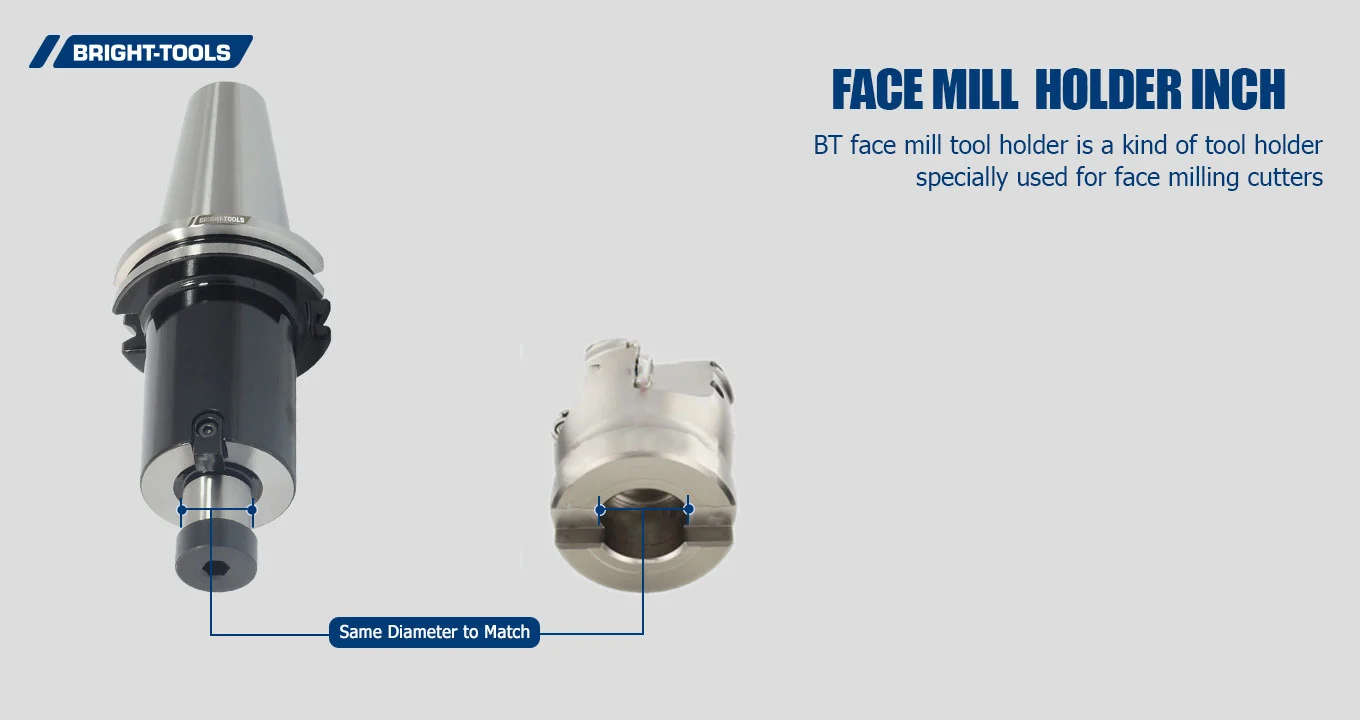

CAT-Face milling tool holder is a kind of tool holder specially used for face milling cutters.
1. Good rigidity.
2. High cutting efficiency.
3. Convenient operation.
CAT-Face milling tool holder is a kind of tool holder specially used for face milling cutters.
1. Good rigidity.
2. High cutting efficiency.
3. Convenient operation.

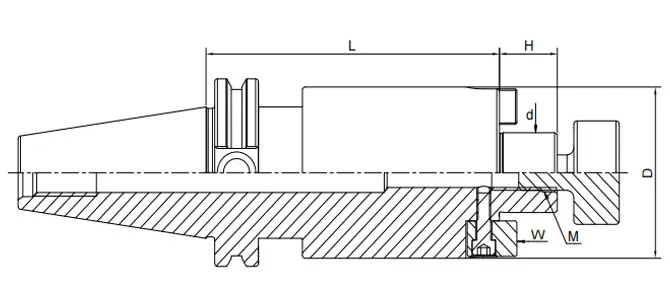

| Size | d | D | L | H | M |
| CAT40-FMA1/2"-1.75" | 1/2" | 36.576 | 1.75" | 13.97 | 1/4-28 |
| CAT40-FMA3/4"-1.75" | 3/4" | 42.926 | 1.75" | 17.45 | 3/8-24 |
| CAT40-FMA1"-2" | 1" | 55.626 | 2" | 17.45 | 1/2-20 |
| CAT40-FMA1-1/4"-2" | 1-1/4" | 69.85 | 2" | 17.45 | 5/8-18 |
| CAT40-FMA1-1/2"-2" | 1-1/2" | 78 | 2" | 23.83 | 3/4-16 |
| CAT40-FMA1/2"-4" | 1/2" | 36.576 | 4" | 13.97 | 1/4-28 |
| CAT40-FMA3/4"-4" | 3/4" | 42.926 | 4" | 17.45 | 3/8-24 |
| CAT40-FMA1"-4" | 1" | 55.626 | 4" | 17.45 | 1/2-20 |
| CAT40-FMA1-1/4"-4" | 1-1/4" | 69.85 | 4" | 17.45 | 5/8-18 |
| CAT40-FMA1-1/2"-4" | 1-1/2" | 78 | 4" | 23.83 | 3/4-16 |
| CAT40-FMA3/4"-6" | 3/4" | 42.926 | 6" | 17.45 | 3/8-24 |
| CAT40-FMA1"-6" | 1" | 55.626 | 6" | 17.45 | 1/2-20 |
| CAT40-FMA3/4"-8" | 3/4" | 42.926 | 8" | 17.45 | 3/8-24 |
| CAT40-FMA1"-8" | 1" | 55.626 | 8" | 17.45 | 1/2-20 |
| CAT50-FMA1/2"-1.38" | 1/2" | 36.576 | 1.38" | 13.97 | 1/4-28 |
| CAT50-FMA3/4"-2" | 3/4" | 42.926 | 2" | 17.45 | 3/8-24 |
| CAT50-FMA1"-2" | 1" | 55.626 | 2" | 17.45 | 1/2-20 |
| CAT50-FMA1-1/4"-2" | 1-1/4" | 69.85 | 2" | 17.45 | 5/8-18 |
| CAT50-FMA1-1/2"-2" | 1-1/2" | 78 | 2" | 23.83 | 3/4-16 |
| CAT50-FMA2"-2" | 2" | 98 | 2" | 23.83 | 1-14 |
| CAT50-FMA3/4"-4" | 3/4" | 42.926 | 4" | 17.45 | 3/8-24 |
| CAT50-FMA1"-4" | 1" | 55.626 | 4" | 17.45 | 1/2-20 |
| CAT50-FMA1-1/4"-4" | 1-1/4" | 69.85 | 4" | 17.45 | 5/8-18 |
| CAT50-FMA1-1/2"-4" | 1-1/2" | 78 | 4" | 23.83 | 3/4-16 |
| CAT50-FMA2"-4" | 2" | 98 | 4" | 23.83 | 1-14 |
| CAT50-FMA3/4"-6" | 3/4" | 42.926 | 6" | 17.45 | 3/8-24 |
| CAT50-FMA1"-6" | 1" | 55.626 | 6" | 17.45 | 1/2-20 |
| CAT50-FMA1-1/4"-6" | 1-1/4" | 69.85 | 6" | 17.45 | 5/8-18 |
| CAT50-FMA1-1/2"-6" | 1-1/2" | 78 | 6" | 23.83 | 3/4-16 |
| CAT50-FMA3/4"-8" | 3/4" | 42.926 | 8" | 17.45 | 3/8-24 |
| CAT50-FMA1"-8" | 1" | 55.626 | 8" | 17.45 | 1/2-20 |
| CAT50-FMA1-1/4"-8" | 1-1/4" | 69.85 | 8" | 17.45 | 5/8-18 |
| CAT50-FMA1-1/2"-8" | 1-1/2" | 78 | 8" | 23.83 | 3/4-16 |
