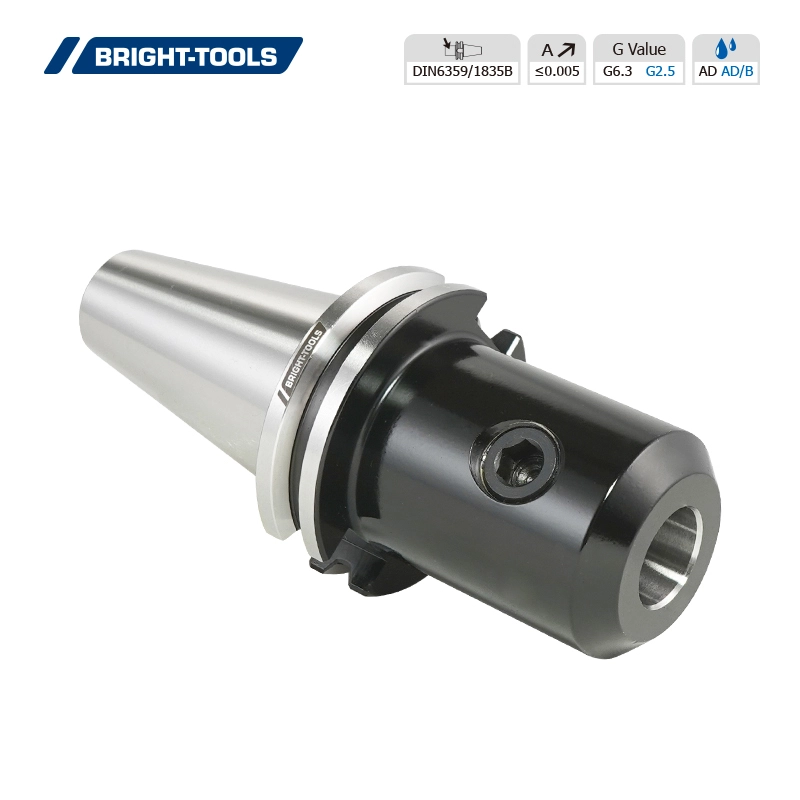

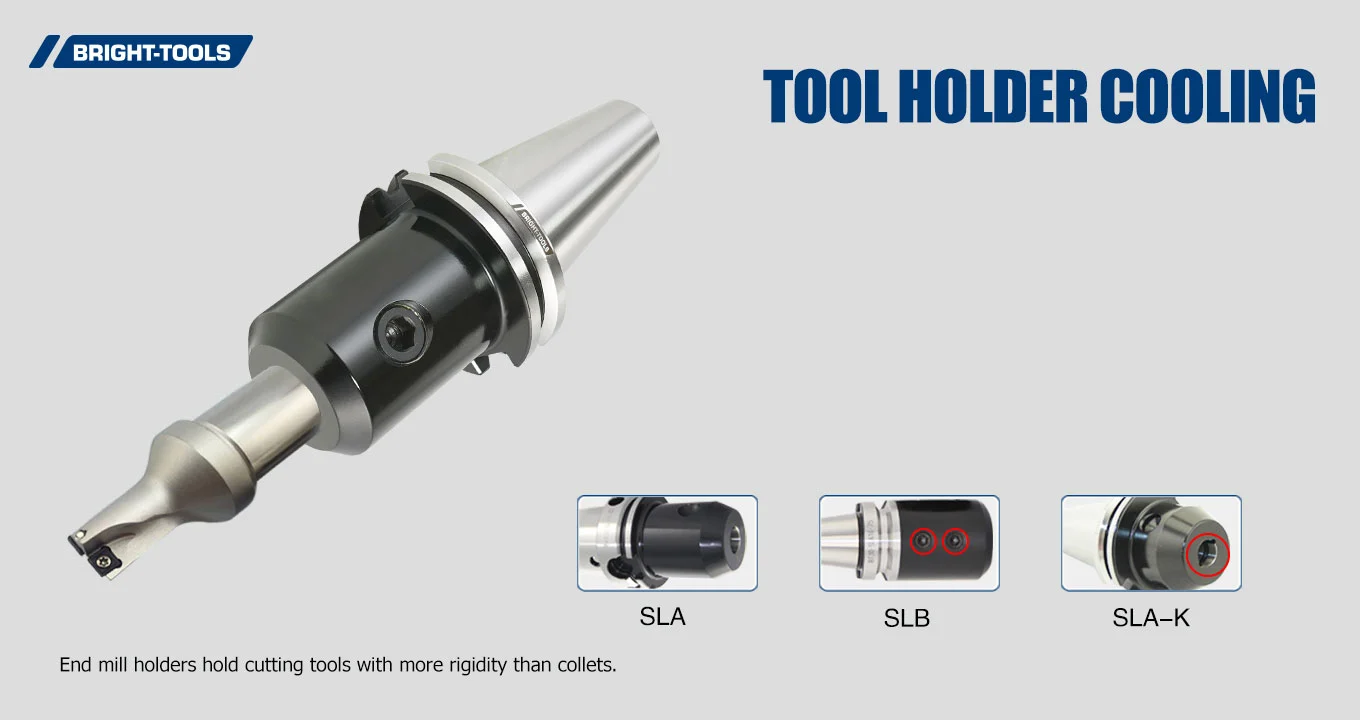

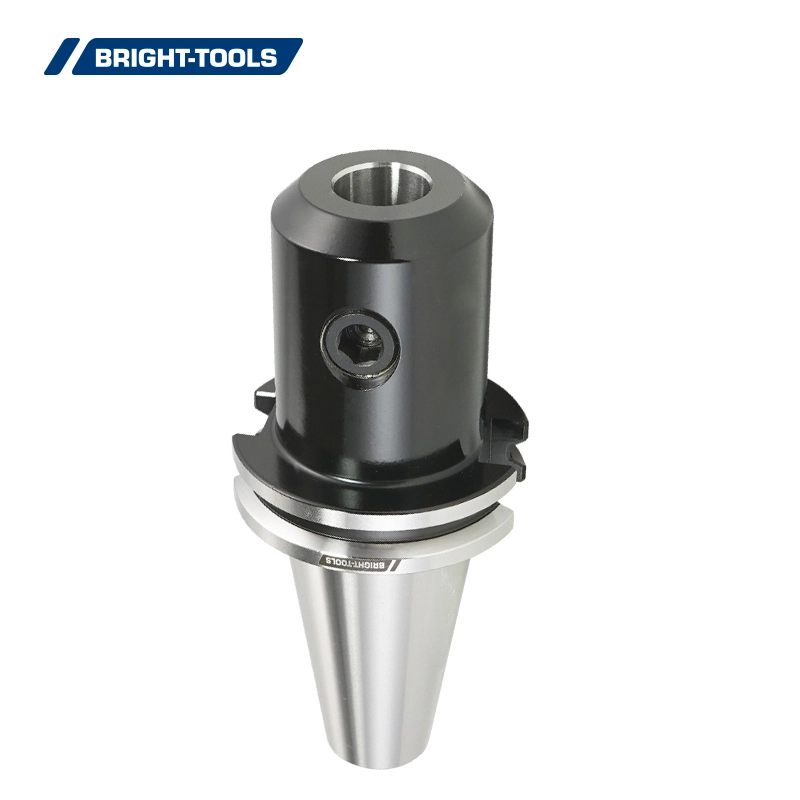

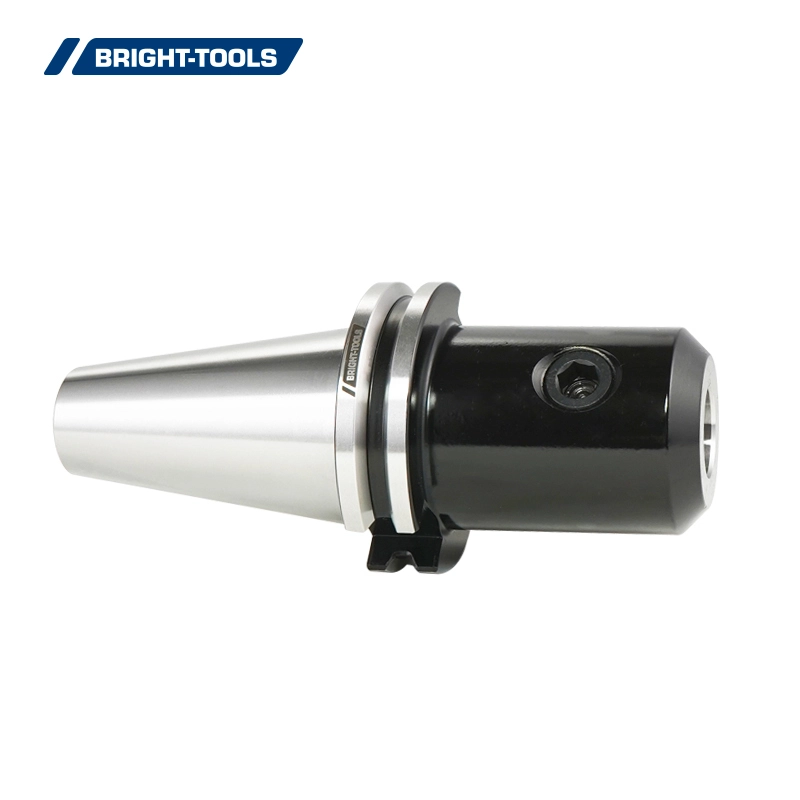

End mill holders hold cutting tools with more rigidity than collets. Available in Weldon type for using tools with Weldon flats.

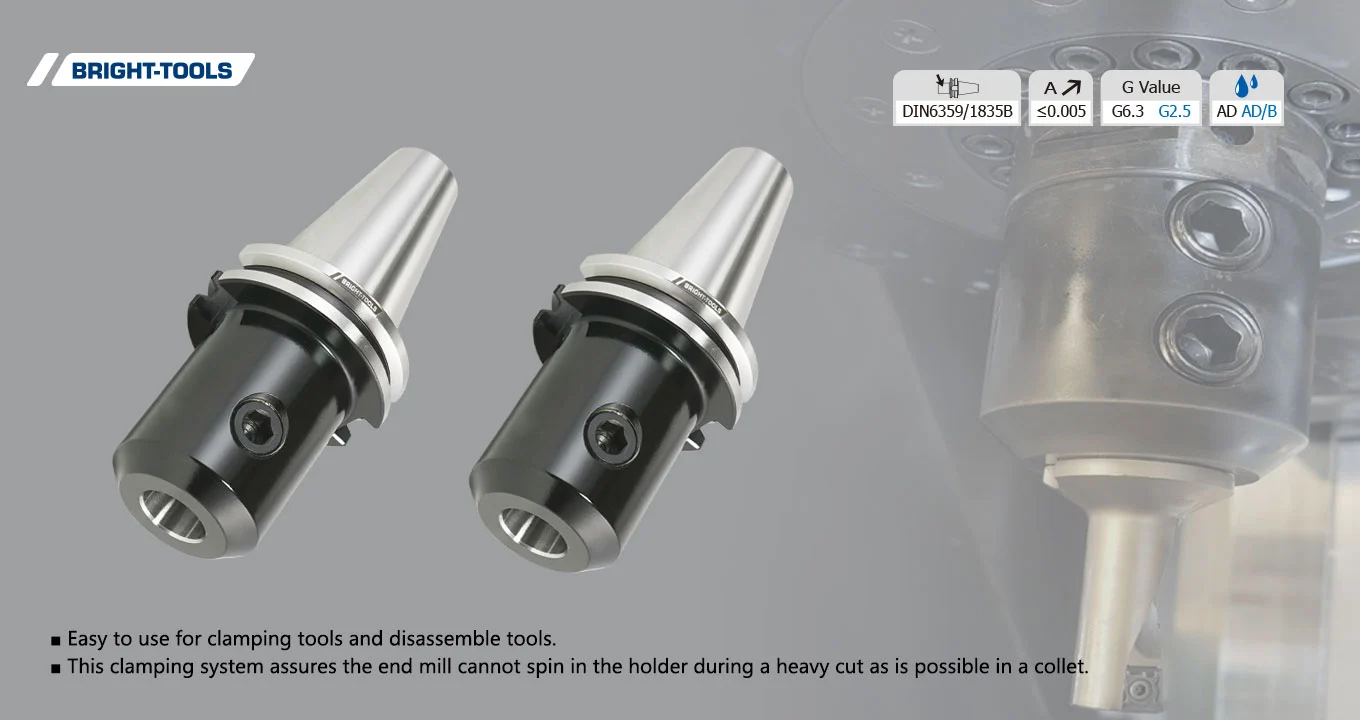

Easy to use for clamping tools and disassemble tools.
This clamping system assures the end mill cannot spin in the holder during a heavy cut as is possible in a collet.
| Size | d | D | L |
| CAT40-SLA1/8"-1.38" | 1/8" | 17.526 | 1.38" |
| CAT40-SLA3/16"-1.38" | 3/16" | 17.526 | 1.38" |
| CAT40-SLA1/4"-1.38" | 1/4" | 19.81 | 1.38" |
| CAT40-SLA5/16"-1.38" | 5/16" | 22.225 | 1.38" |
| CAT40-SLA3/8"-1.38" | 3/8" | 25.4 | 1.38" |
| CAT40-SLA1/2"-1.75" | 1/2" | 31.75 | 1.75" |
| CAT40-SLA5/8"-1.75" | 5/8" | 38.1 | 1.75" |
| CAT40-SLA3/4"-1.75" | 3/4" | 44.45 | 1.75" |
| CAT40-SLA7/8"-1.75" | 7/8" | 47.625 | 1.75" |
| CAT40-SLA1"-1.75" | 1" | 50.8 | 1.75" |
| CAT40-SLA1-1/4"-2" | 1-1/4" | 63.5 | 2" |
| CAT40-SLA1/8"-2.5" | 1/8" | 17.526 | 2.5" |
| CAT40-SLA3/16"-2.5" | 3/16" | 17.526 | 2.5" |
| CAT40-SLA1/4"-2.5" | 1/4" | 19.81 | 2.5" |
| CAT40-SLA5/16"-2.5" | 5/16" | 22.225 | 2.5" |
| CAT40-SLA3/8"-2.5" | 3/8" | 25.4 | 2.5" |
| CAT40-SLA7/16"-2.5" | 7/16" | 28.575 | 2.5" |
| CAT40-SLA1/2"-2.5" | 1/2" | 31.75 | 2.5" |
| CAT40-SLA5/8-3" | 5/8" | 38.1 | 3" |
| CAT40-SLA3/4"-3" | 3/4" | 44.45 | 3" |
| CAT40-SLA7/8"-3.5" | 7/8" | 47.625 | 3.5" |
| CAT40-SLA1"-3" | 1" | 50.8 | 2" |
| CAT40-SLA1/8"-4" | 1/8" | 17.526 | 4" |
| CAT40-SLA3/16"-4" | 3/16" | 17.526 | 4" |
| CAT40-SLA1/4"-4" | 1/4" | 19.81 | 4" |
| CAT40-SLA5/16"-4" | 5/16" | 22.225 | 4" |
| CAT40-SLA3/8"-4" | 3/8" | 25.4 | 4" |
| CAT40-SLA1/2"-4" | 1/2" | 31.75 | 4" |
| CAT40-SLA5/8-4" | 5/8" | 38.1 | 4" |
| CAT40-SLA3/4"-4" | 3/4" | 44.45 | 4" |
| CAT40-SLA1"-4" | 1" | 50.8 | 4" |
| CAT40-SLA1-1/4"-4" | 1-1/4" | 63.5 | 4" |
| CAT40-SLA1-1/2"-4" | 1-1/2" | 63.5 | 4" |
| CAT40-SLA1/4"-6" | 1/4" | 19.81 | 6" |
| CAT40-SLA5/16"-6" | 5/16" | 22.225 | 6" |
| CAT40-SLA3/8"-6" | 3/8" | 25.4 | 6" |
| CAT40-SLA1/2"-6" | 1/2" | 31.75 | 6" |
| CAT40-SLA5/8"-6" | 5/8" | 38.1 | 6" |
| CAT40-SLA3/4"-6" | 3/4" | 44.45 | 5.5" |
| CAT40-SLA7/8"-6" | 7/8" | 47.625 | 6" |
| CAT40-SLA1"-6" | 1" | 50.8 | 6" |
| CAT40-SLA1-1/4"-6" | 1-1/4" | 63.5 | 6" |
| CAT40-SLA1-1/2"-6" | 1-1/2" | 63.5 | 6" |
| CAT50-SLA3/16"-2.5" | 3/16" | 17.526 | 2.5" |
| CAT50-SLA1/4"-2.5" | 1/4" | 19.81 | 2.5" |
| CAT50-SLA5/16"-2.5" | 5/16" | 22.225 | 2.5" |
| CAT40-SLA3/8"-2.5" | 3/8" | 25.4 | 2.5" |
| CAT50-SLA7/16"-2.5" | 7/16" | 28.575 | 2.5" |
| CAT50-SLA1/2"-2.62" | 1/2" | 31.75 | 2.62" |
| CAT50-SLA5/8"-3" | 5/8" | 38.1 | 3" |
| CAT50-SLA3/4-3" | 3/4" | 44.45 | 3" |
| CAT50-SLA1"-2" | 1" | 50.8 | 2" |
| CAT50-SLA1-1/4"-2" | 1-1/4" | 63.5 | 2" |
| CAT50-SLA1-1/2"-2.25" | 1-1/2" | 63.5 | 2.25" |
| CAT50-SLA2"-5.62" | 2" | 95.25 | 5.62" |
| CAT50-SLA1/4"-4" | 1/4" | 19.81 | 4" |
| CAT50-SLA5/16"-4" | 5/16" | 22.225 | 4" |
| CAT50-SLA3/8"-4" | 3/8" | 25.4 | 4" |
| CAT50-SLA7/16"-4" | 7/16" | 28.575 | 4" |
| CAT50-SLA1/2"-4" | 1/2" | 31.75 | 4" |
| CAT50-SLA5/8"-4" | 5/8" | 38.1 | 4" |
| CAT50-SLA3/4"-4" | 3/4" | 44.45 | 4" |
| CAT50-SLA7/8"-4" | 7/8" | 47.625 | 4" |
| CAT50-SLA1"-4" | 1" | 50.8 | 4" |
| CAT50-SLA1-1/4"-4" | 1-1/4" | 63.5 | 4" |
| CAT50-SLA1-1/2"- 4" | 1-1/2" | 63.5 | 4" |
| CAT50-SLA1/4"-6" | 1/4" | 19.81 | 6" |
| CAT50-SLA5/16"-6" | 5/16" | 22.225 | 6" |
| CAT50-SLA3/8"-6" | 3/8" | 25.4 | 6" |
| CAT50-SLA7/16"-6" | 7/16" | 28.575 | 6" |
| CAT50-SLA1/2"-6" | 1/2" | 31.75 | 6" |
| CAT50-SLA5/8"-6" | 5/8" | 38.1 | 6" |
| CAT50-SLA3/4"-6" | 3/4" | 44.45 | 6" |
| CAT50-SLA7/8"-6" | 7/8" | 47.625 | 6" |
| CAT50-SLA1"-6" | 1" | 50.8 | 6" |
| CAT50-SLA1-1/4"-6" | 1-1/4" | 63.5 | 6" |
| CAT50-SLA1-1/2"- 6" | 1-1/2" | 63.5 | 6" |
