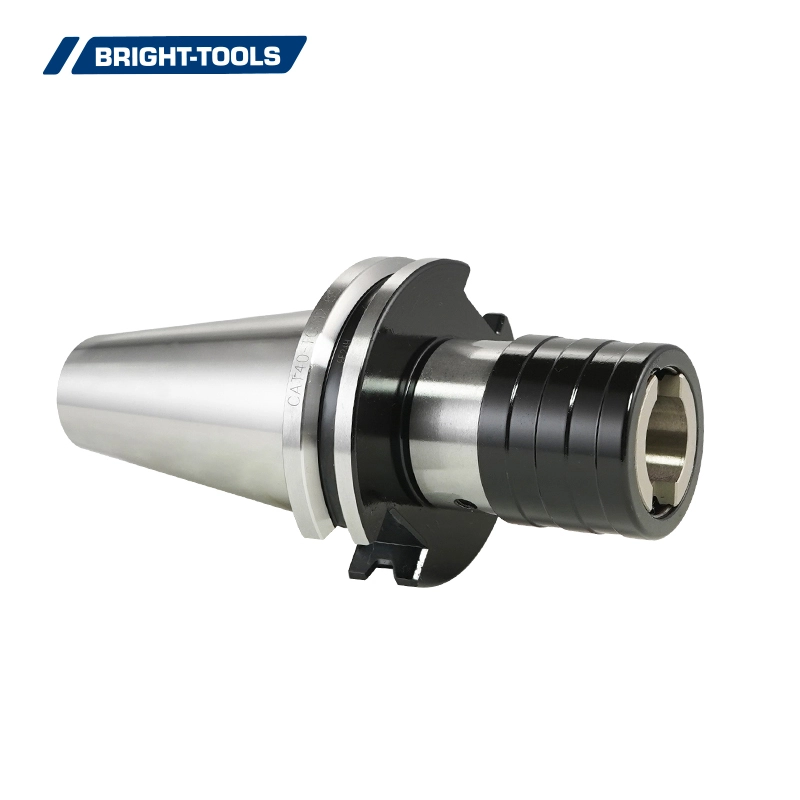

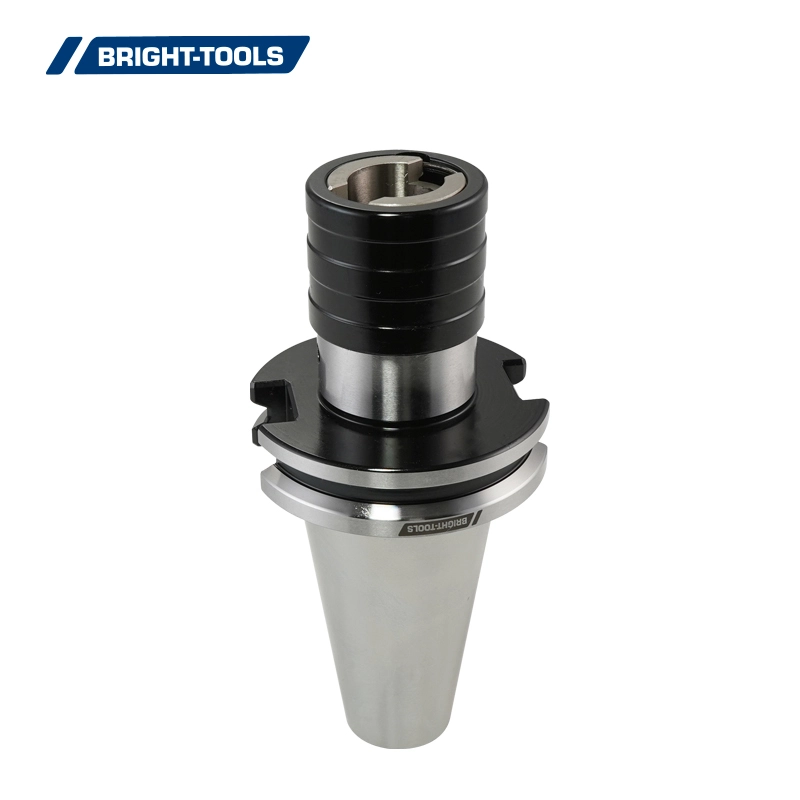

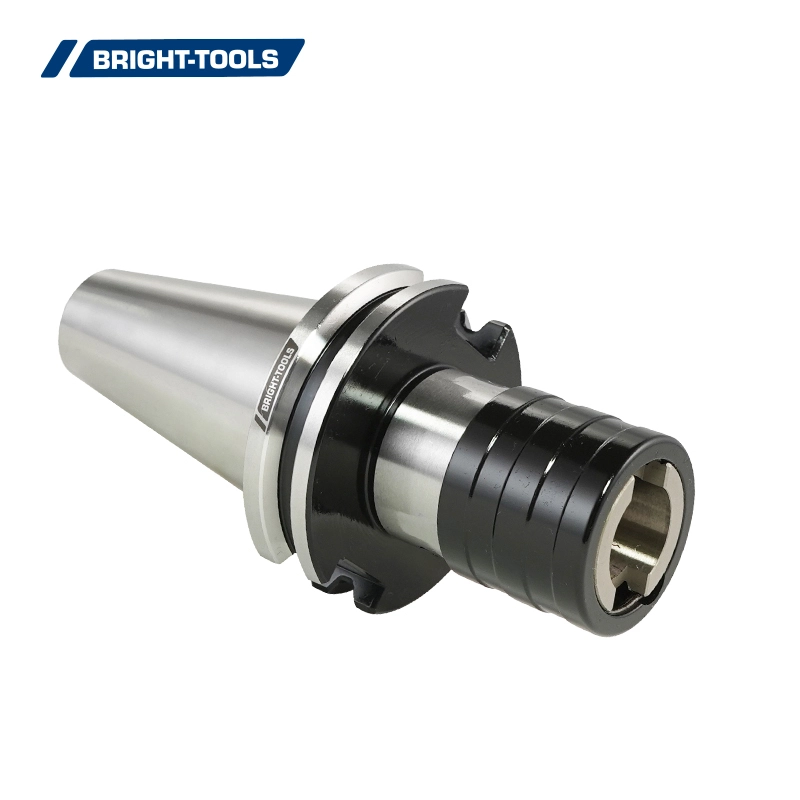

ANSI B5.50 Quick Change Tapping Chuck

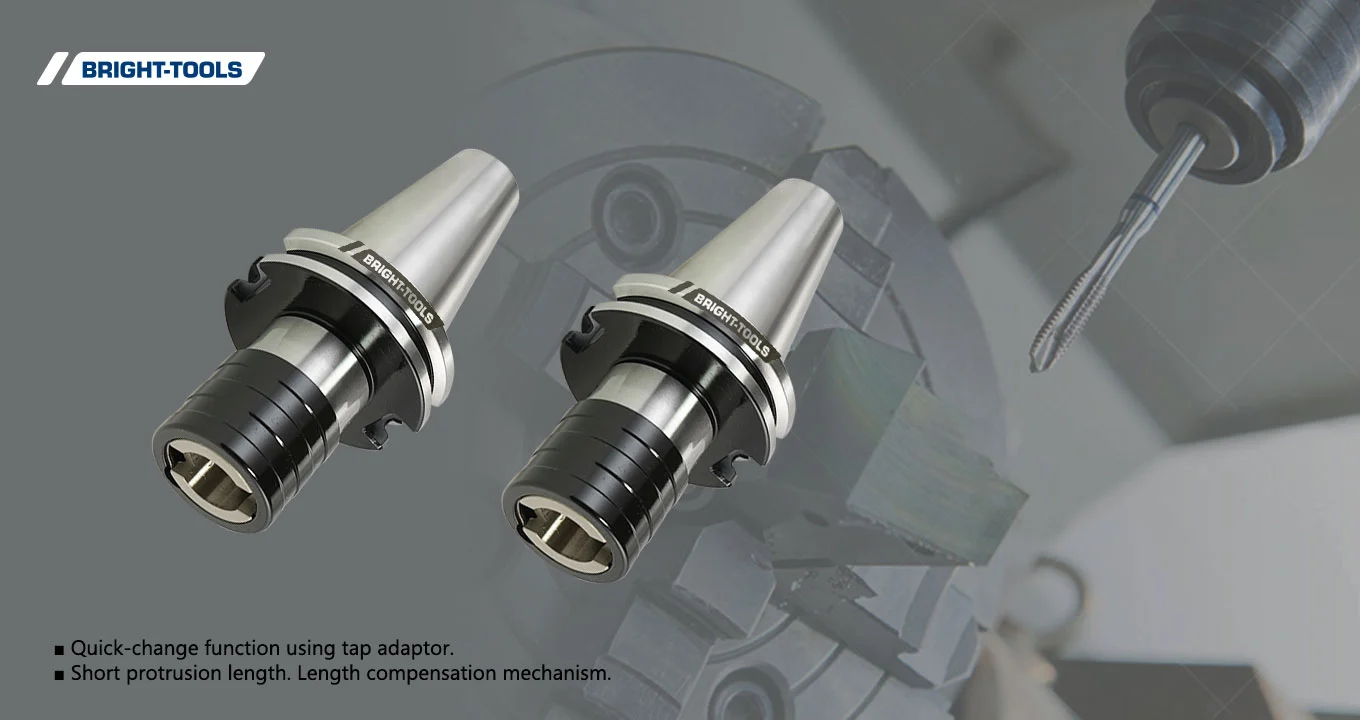

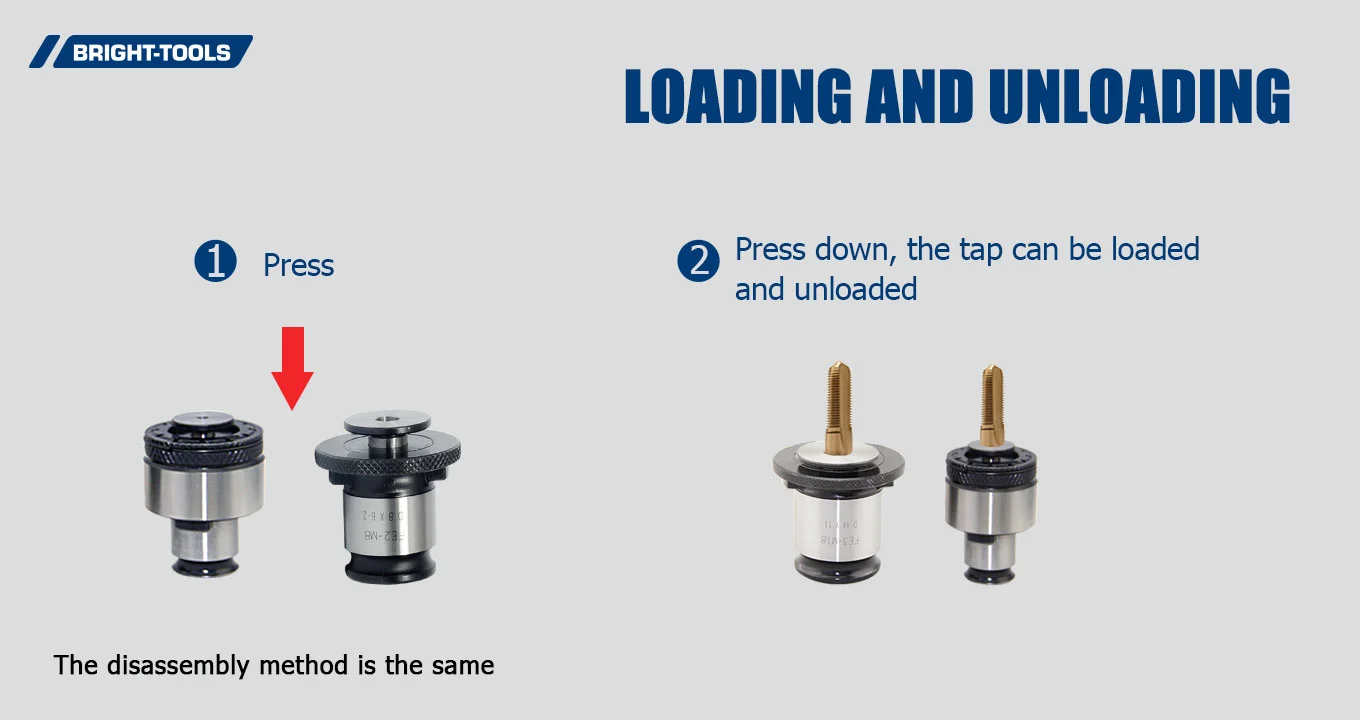

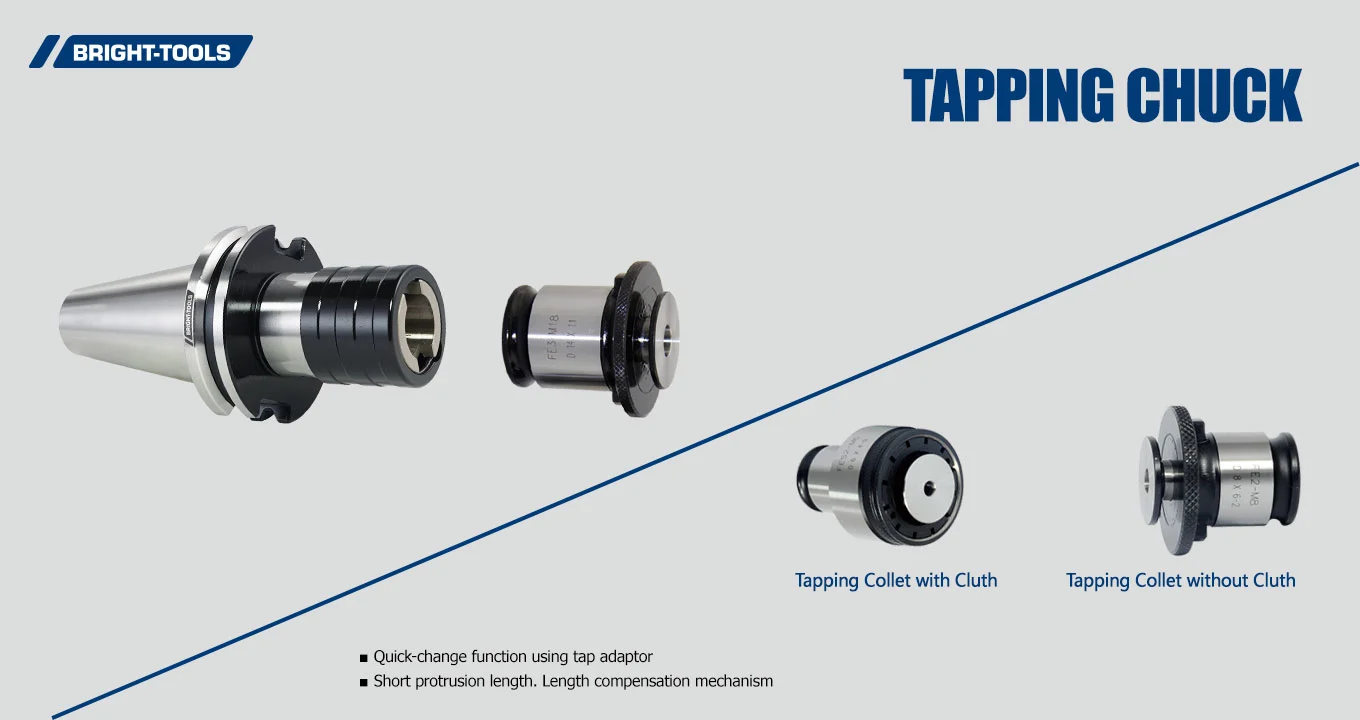

BT Tapping chuck with quick-change function using tap adaptor.
Short protrusion length. Length compensation mechanism.
Size | D | d | L | T | C |
CAT40-TC312-65 | 36 | 19 | 65 | 7.5 | 7.5 |
CAT40-TC820-93 | 54 | 31 | 93 | 12.5 | 12.5 |
CAT40-TC1433-156 | 78 | 48 | 156 | 22 | 22 |
CAT50-TC312-100 | 36 | 19 | 100 | 7.5 | 7.5 |
CAT50-TC820-100 | 54 | 31 | 100 | 12.5 | 12.5 |
CAT50-TC1433-142 | 78 | 48 | 142 | 22 | 22 |
